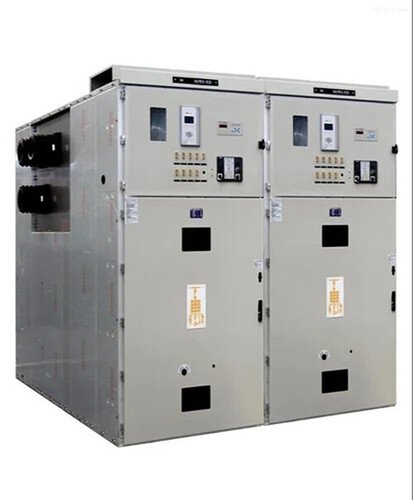

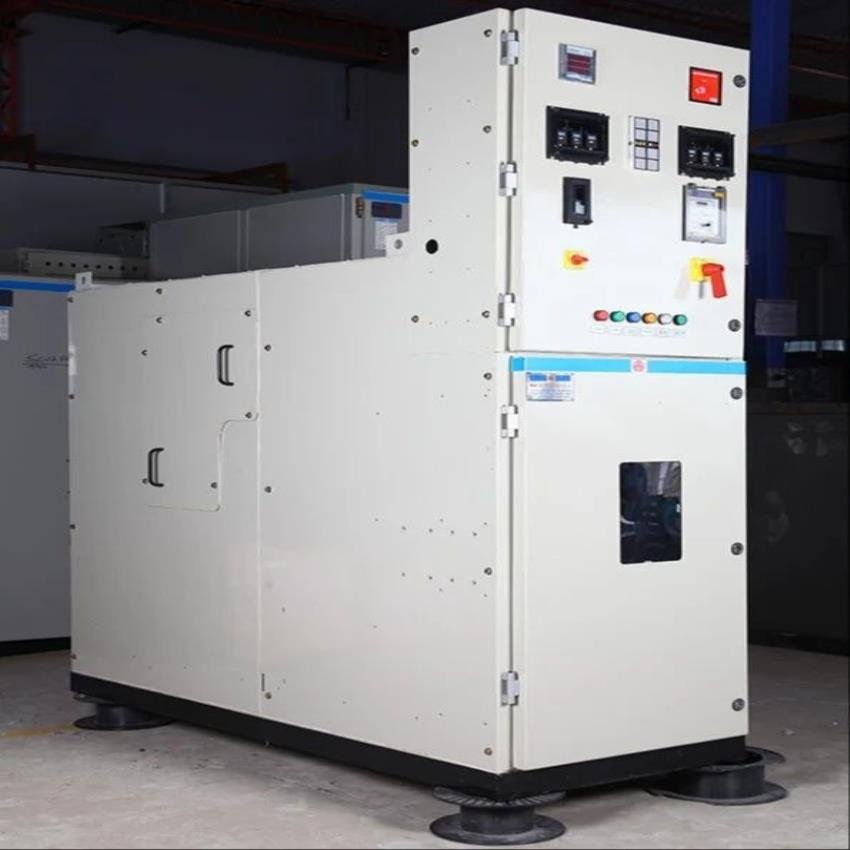

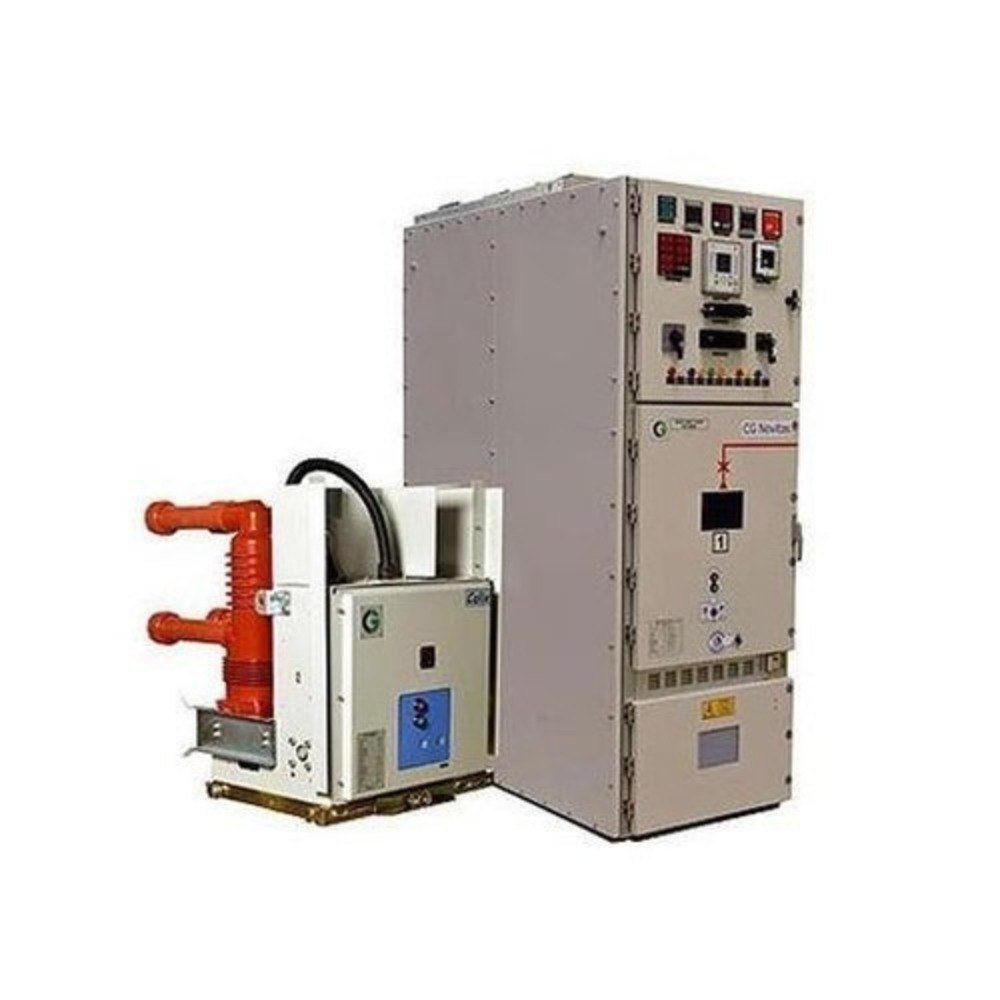

Indoor VCB (11–36 kV)
$0.00
Featuring advanced vacuum circuit breaker technology, these provide superior interrupting capability ideal for critical applications.
Characteristics
- Floor rolling & cassette type VCB.
- Several optional equipment available.
- Easy to operate with front door closed.
- Extensible.
- Front operated with mechanical emergency tripping button.
- Modular construction for minimizing space requirement.
Description
Technical Data
| Parameter | Specification |
|---|---|
| Rated Voltage | 12 / 24 / 36 kV |
| Rated Current | 630 / 1250 / 2500 / 2000 A |
| Insulation Level | 75 / 125 / 170 (kVp) |
| Lightning Impulse / Power Frequency | 75 / 125 / 170 (kVp), 50 Hz / 1 Min, 28 / 60 / 70 kV |
| Short Circuit Breaking Current | 25 / 31.5 / 40 kA |
| Ingress Protection | IP4X / IP5X |
| Ambient Temperature | -5°C to +40°C |
| Applicable Standard | IS 13118, IEC 62271-100 |
